ROS DepthCloud processing distributed

Today I achieved the following setup by dividing my openni2_launch files into two separate launchers beeing executed on two different machines: one for processing (nodelet_managing) running at a powerful server and one for streaming the [amazon &title=Xtion&text=Asus Xtion]-Image data from the [amazon &title=CubieTruck&text=CubieTruck] to the /camera -topic namespace. After that I could visualize, what my laptop wasn’t able to do before: a 3D DepthCloud with RGB-Data coloring in rviz. It has a native resolution of 640*480 and looks like that:

my first ROS 3D DepthCloud

I can’t say how efficient the load is balanced right now – because I am currently still optimizing.



Raspberry Pi Robot with ROS, Xtion, OpenNi2 and rviz providing 3d point cloud data

That’s one small step for a man, one giant leap for a small raspberry powered ROS robot.

Okay – maybe thats a bit too big – but I am in a good mood. I compiled the latest openni2_camera ros driver on the little arm cpu of the [amazon asin=B00LPESRUK&text=[amazon &title=Raspberry Pi&text=Raspberry Pi]]. Before that, I used the driver provided by kalectro (see source), which is an older fork but prepared for raspberry.

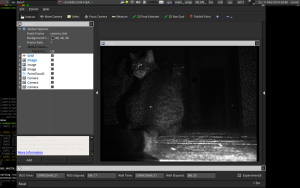

As a result of that, I’ve got some new features like the IR-Image stream I visualized with rviz :

Raspberry Pi Robot with ROS

Raspberry Pi Robot with ROS

or the handy little parameter with which it is possible to skip some frames which reduces the load a bit:

set param name="camera/driver/data_skip" value="300"
rosrun openni2_camera openni2_camera_node

Now, running roscore on my laptop – I had some sensor_msg/Images I needed to convert into 3d depth data. After some little issues with faulty XML-launch files, I finally got openni2_launch up and running, which is a handy little launchfile using rgb_launch providing every data format you’ll can get out of the [amazon &title=Xtion&text=Asus Xtion].

roslaunch openni2_camera openni2.launch

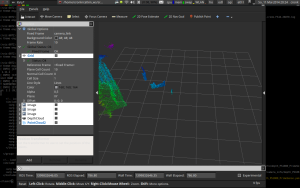

Now I’ve had a /camera/depth/points topic, with a pointcloud2 datatype. Which is really nice because rviz can visualize it:

Raspberry Pi Robot with ROS - Xtion

Raspberry Pi Robot with ROS – Xtion

Houston, we’ve had a problem.

Yes, there were times when it was possible to land on the moon by the power of a daily life calculator – but todays robots need more than that 🙂 So my aged Intel Centrino Core 2 Duo ASUS-F3J with 1,7Ghz each core isn’t able to do more than I reached today. It pops to 100% processing and after some time it collapses totally.

So todays lesson learned is:

Robots are distributed systems – by every measure.

So I’ll need more power.. again…

Raspberry Pi Robot #1

I’ve completed a new version today. It is a bit smaller and heavier, but already running ros hydro (I will write a small tutorial soon how to achieve that) with OpenNI2 and the ros-package openni2-camera. With that its possible to stream data to another computer visualizing the depth image of the [amazon &title=Asus Xtion&text=Asus Xtion] in rviz. I had some trouble solving and compiling all drivers, dependencies like ros-packages and libs like openCV (see Howto).

When the camera node is running the Raspberry is faced at with a processing load of 100%. The used network bandwidth is about 200-300 kb/s.

I suppose the raspberry Pi needs to be replaced by something stronger soon.

But for my first week in robotics, it’s something 🙂
